Polymer 3d printing

Functional polymer components in PA12 and PA12-GB. SLS and MJF processes with consistent material properties.

Industrial polymer 3D printing technology

3DStep uses two industrial polymer printing technologies for component production: selective laser sintering and HP Multi Jet Fusion. Both processes are based on validated parameters, documented material data and controlled production steps.

Polymer parts can be manufactured, dyed and finished according to the application’s functional and quality requirements.

Our polymer printers

2 x HP MJF 4210

Build volume: 380 x 284 x 380 mm3

HP MJF 5600

Build volume: 380 x 284 x 380 mm3

2 x EOS SLS P396

Build volume: 340 x 340 x 600 mm3

EOS SLS P110 Velocis

Build volume: 200 x 250 x 330 mm3

Material options for polymer 3D printing

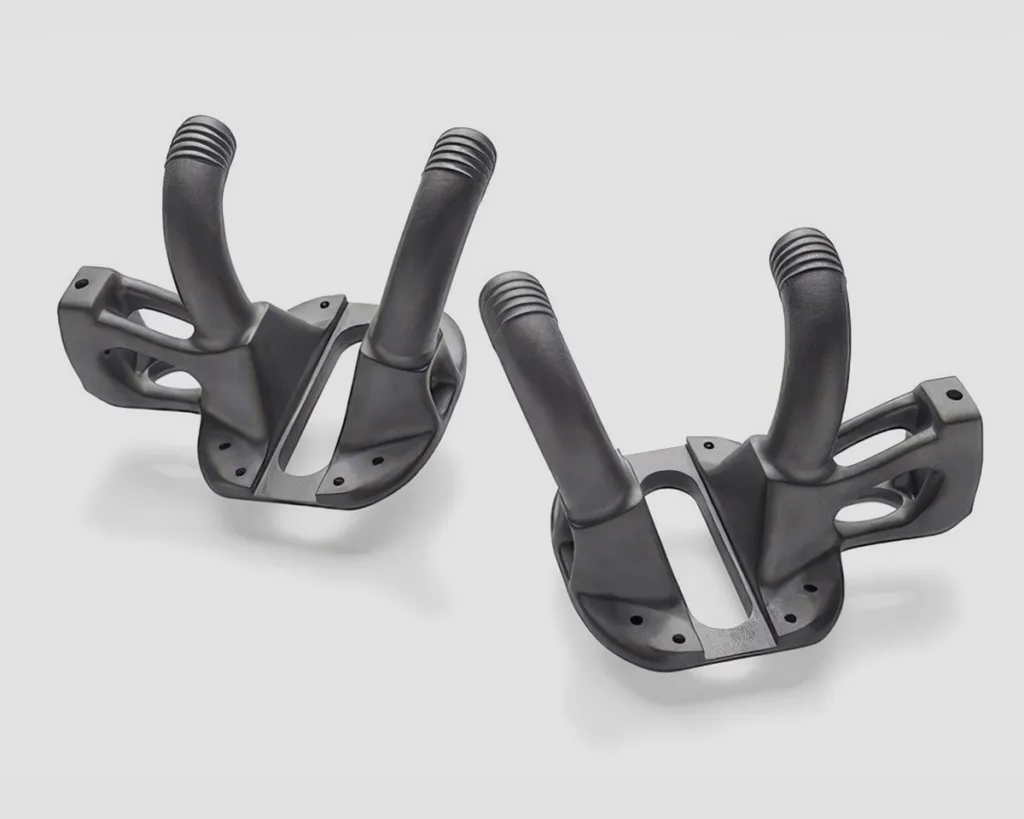

MJF/PA12

HP MJF PA12 is a robust, versatile thermoplastic that produces dense parts with excellent mechanical properties and chemical resistance. It is the definitive material for reliable end-use production. Common applications include machinery housings, complex ducting systems, protective enclosures, and custom mounting brackets.

Main benefits:

Chemically Resistant
High strength
Versatile

Datasheet_PA12 Spec sheet

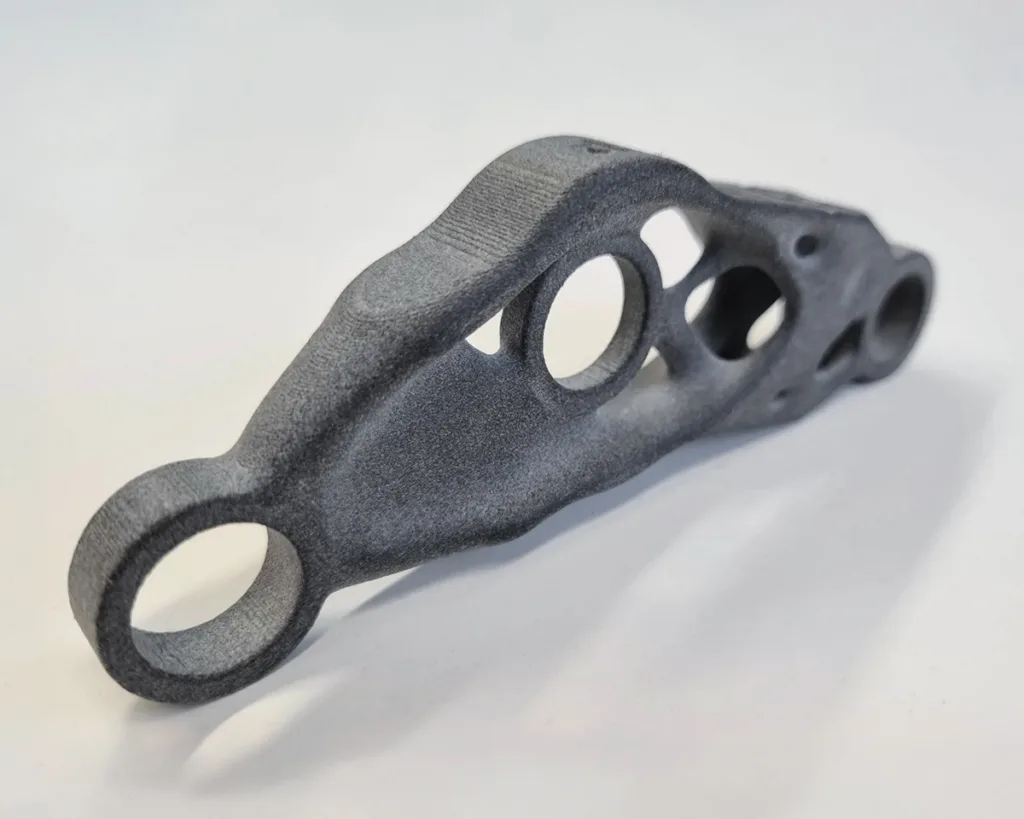

MJF/PA12ESD

PA12 ESD is an electrostatic dissipative material designed to protect sensitive components from static discharge while maintaining structural integrity. Ideal applications include enclosures for explosive ATEX environments, electronics casings, automated assembly fixtures, and static-safe conveyor components.

Main benefits:

Dimensionally Stable
ESD Safe
High strength

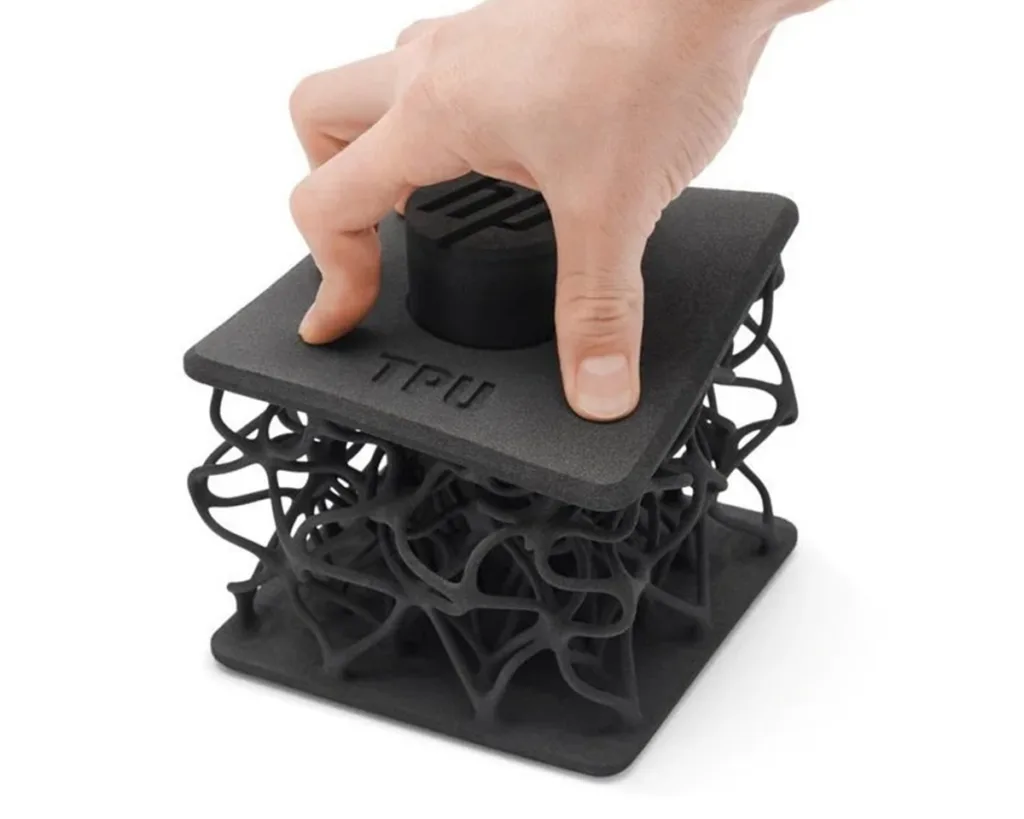

MJF/TPU ShA90

MJF TPU (Shore 90A) is a durable elastomer combining exceptional tear resistance, superior shock absorption, and high flexibility. It handles heavy mechanical wear effortlessly. Typical applications include industrial seals, vibration shock absorbers, protective equipment bumpers, and flexible piping components.

Main benefits:

Flexible
Impact Resistant
Wear Resistant

Datasheet_MJF_TPU90 Spec sheet

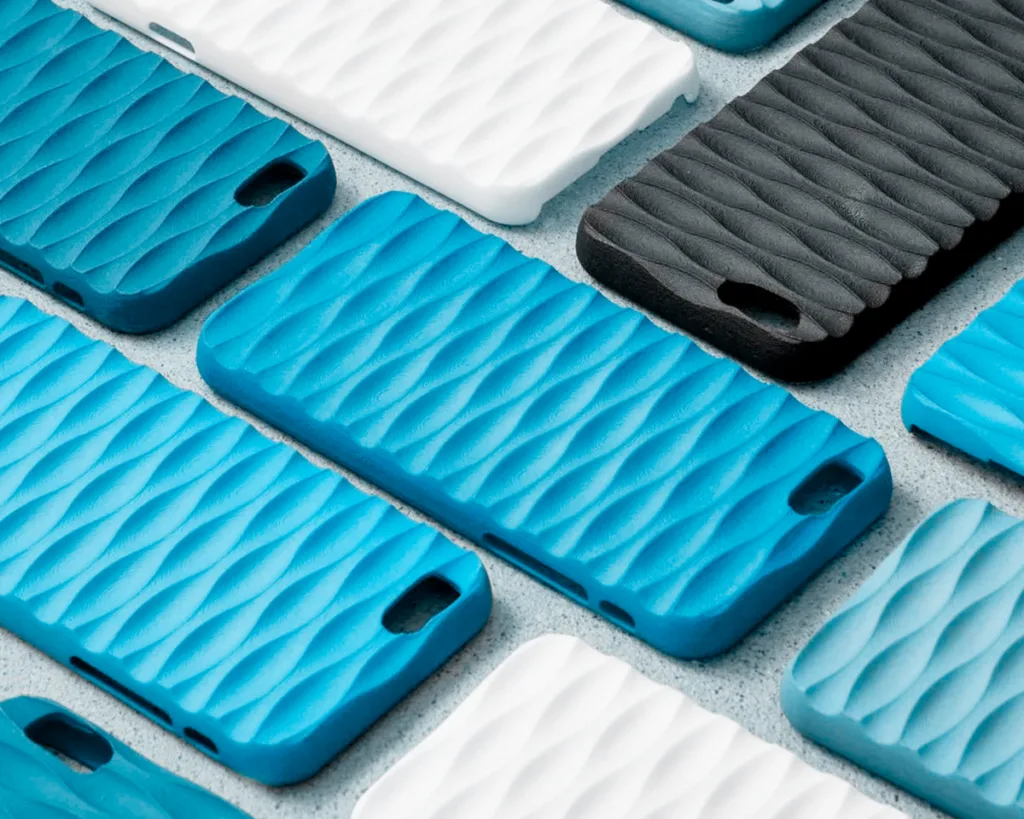

SLS/PA2200

EOS SLS PA2200 is a premium polyamide material producing highly precise parts with a perfectly balanced property profile and great long-term stability. Typical use cases include complex mechanical brackets, functional prototype assemblies, internal routing guides, detailed enclosures and end use production components.

Main benefits:

High strength
Highly Precise
Versatile

SLS/PA2210FR

PA 2210 FR is a halogen-free, flame-retardant material providing higher stiffness than unfilled PA 12. In a fire, it forms a protective, isolating carbonating surface coating. It meets UL 94 V-0 and JAR/FAR 25.853 standards. Typical applications include electrical appliance housings and aviation air ducts.

Main benefits:

Flame Retardant
Halogen Free
Rigid

Datasheet_PA2210FR Spec sheet

SLS/PA2241FR

PA 2241 FR is a halogen-based flame retardant polyamide 12 that offers a high strain at break and excellent part economy due to its recyclability. It is compliant with JAR/FAR 25.853 safety standards. It is optimized for vehicle and aviation interiors, air ducts, and air outlet valves.

Main benefits:

Economical
Flame Retardant
Tough

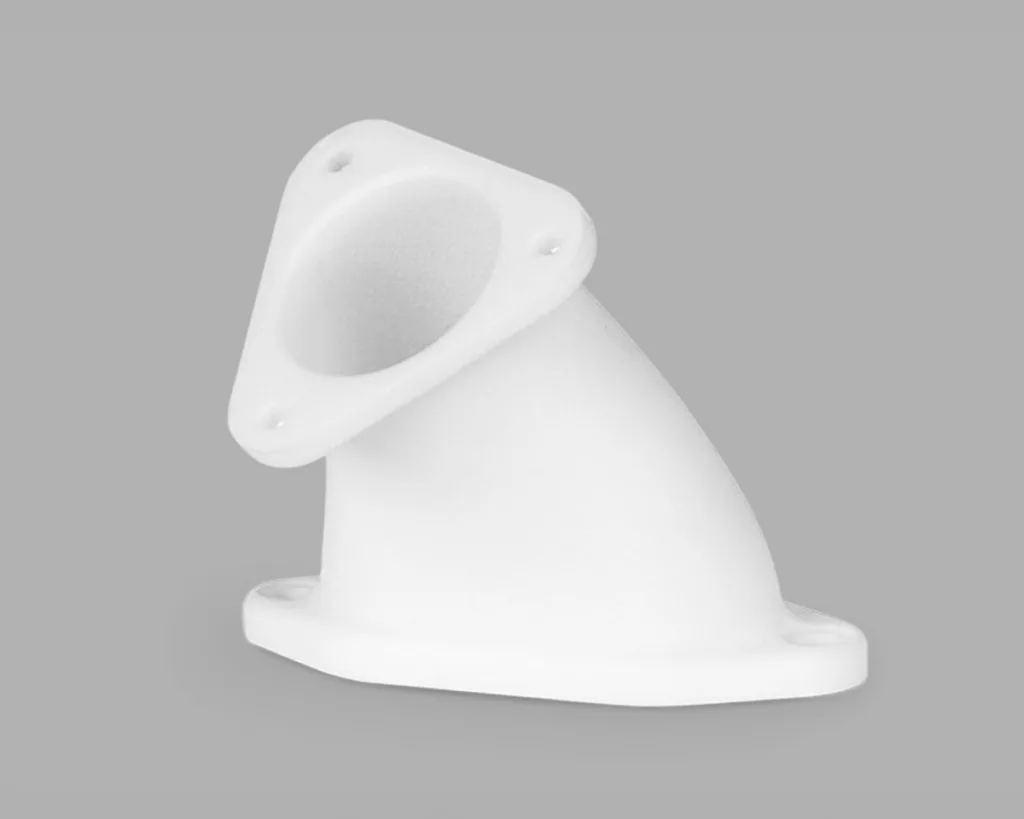

SLS/PA3200GF

PA3200GF is a glass-filled polyamide powder offering significantly elevated stiffness, excellent thermal stability, and superior wear resistance under heavy structural loads. Key applications include heavy-duty machine enclosures, rigid fixture tooling, pump impellers, and highly stressed structural brackets.

Main benefits:

Heat Resistant
Highly Rigid
Wear Resistant

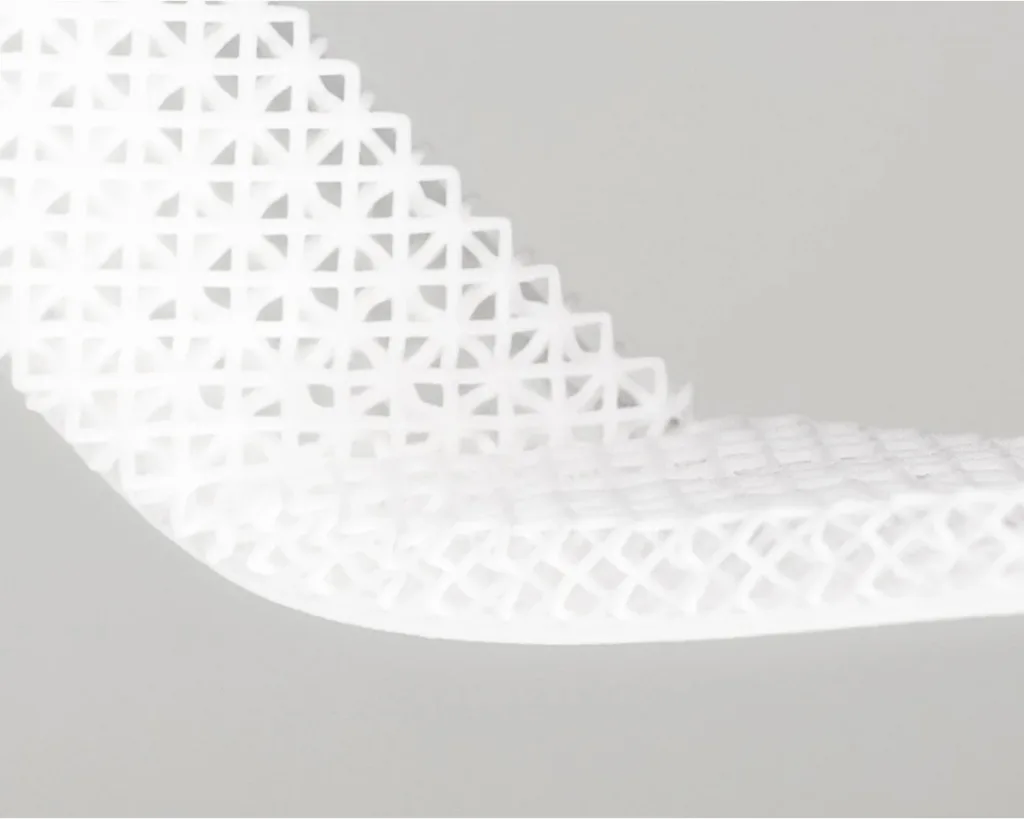

SLS/TPU1301 ShA80

SLS TPU1301 (Shore 80A) is a highly elastic, soft thermoplastic polyurethane providing exceptional energy return and dynamic durability under continuous stress. Common applications include industrial machinery bellows, flexible seals, vibration dampeners, and protective soft-touch grips.

Main benefits:
